May 11th, 2007: NovAtel DL-V3 GPS Receiver

Filed under: Products

NovAtel GPS Logo

NovAtel’s DL-V3 Series GPS receiver is now available.
This powerful GPS receiver adds data logging capability along with LED tracking indication. It is powered by the OEMV-3, which can utilize Satellite Base Augmentation System (SBAS) corrections such as WAAS, OmniSTAR VBS, XP, or HP corrections, or CDGPS.

It can accept a power input range from 9 – 28 VDC which makes it versatile for a number of applications. Multiple data connection types allow for flexibility. You can connect via 9 pin com port, USB, ethernet, or bluetooth.

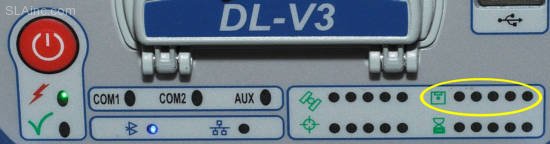

Data logging is accomplished by a compact flash card which is accessible on the front of the unit. Remaining disk space is shown via the LED indicator on the lower right of the unit. The receiver also shows satellite coverage, position type, and convergence attributes in the same area. Communication information (com port activity and bluetooth/ethernet indication) is shown on the left portion of the front panel.

Key Features

  • Data logging via removable compact flash card
  • Font panel LEDs that indicate position accuracy, satellite coverage, disk space, and convergence
  • Field upgradeable from single frequency up to full RT2 capable GPS receiverField upgradeable from single frequency up to full RT2 capable GPS receiver
  • Multiple com options including 9-pin RS-232, bluetooth, USB, or ethernet

For more information you can download the product datasheet on the DL-V3 GPS receiver at http://novatel.com/Documents/Papers/DL-V3.pdf (PDF)
